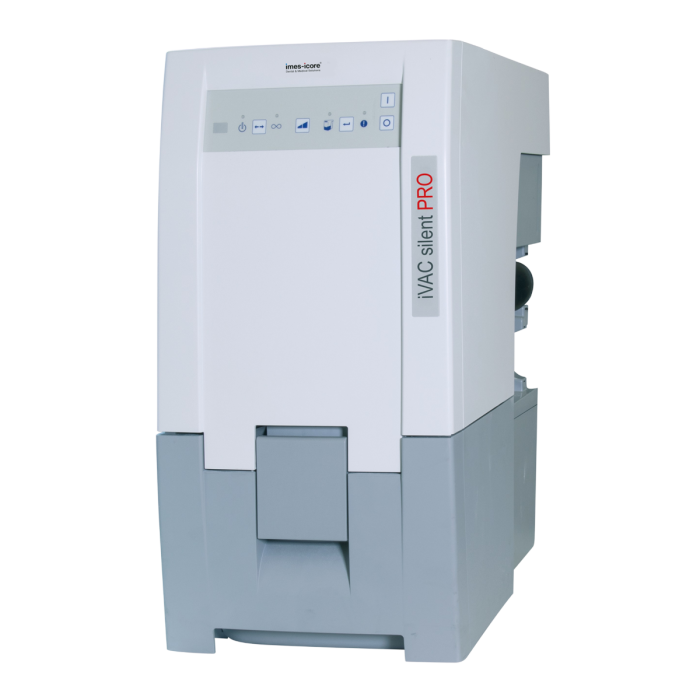

iVAC silent PRO Suction unit 120V
Suction unit, 120V, incl. cable, hose, adapter.
Equipped with a teflon filter cartridge with automated cleaning and dust drawer. With the suction power of 240m³/h the iVAC silent is perfectly suited for CORiTEC milling machine series 150iand 250i. The iVAC silent fits into the imes-icore machine tables T1, T2 or T250.
- Compact design, quiet running
- Volume flow: 240 m³/hr
- Power: 1440 W
- Teflon filter cartridge
- Self cleaning automatically by compressed air
- WxDxH: 270x540x535 mm / 10.6 x 21.2 x 21.1" inch
- Flter volume: 8 liters / 30.28 gpm (dust drawer)
- Supply voltage: 120 V
- Frequency: 50/60Hz
- Weight (empty): 18 kg
- Fixed connection cable
- NEMA plug
- hose (60mm inner diameter)
- adapter (32 mm)
Suitable for:
CORiTEC 150i series
CORiTEC 250i series
Guarantee of 12 months a maximum of duration of 1000 operating hours (motor running time).
Parts which are subject to natural wear and tear (wear parts, f.e. turbine, filter, etc. ...) and consumables are excluded from the guarantee.
| Weight, kg | 18.0000 |
|---|---|
| Dimensions WxDxH, mm | 270x540x535 |
| Machine / product affiliation | CORiTEC 150i dry, CORiTEC 150i PRO, CORiTEC 250i PRO, CORiTEC 250i Loader PRO |
| Version | 120V |
