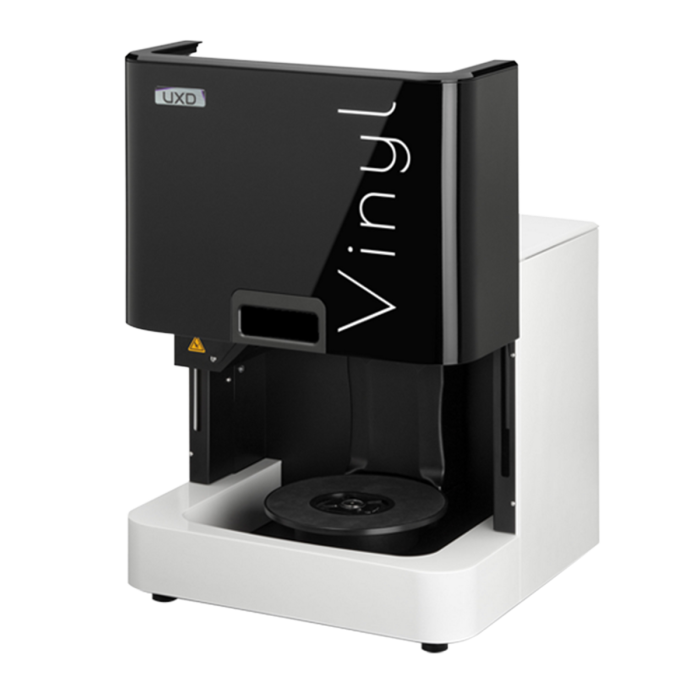

Dental Scanner

Two high-resolution cameras and an advanced 3D sensor deliver perfect scan data. Two additional cameras and a projector give the option to choose between four modes: The number of cameras as well as their resolution can be determined, so that a high-resolution data set can be created with full scan coverage or -saving time- a reduced data set. Voluminous articulators can be easily placed in the scanner since the system plate has been enlarged.

Number of cameras:    4
Camera pixels:    2 × 3.2 MP
                              2 × 1.0 MP
Number of projectors:    3
Accuracy (ISO 12836):    4 µm
Output data format:    PLY, STL
Light source:    Blue light LED
Measuring technique:    Stripe light triangulation
Measuring field (X×Y×Z):    Camera 1: 80 × 60 × 82 mm
                                               Camera 2: 88 × 63 × 82 mm
Connections:    1 × USB, 1 × power
Mains voltage:    100 - 240 VAC, 50/60 Hz
Warranty:    36 months

Scope of delivery:    Vinyl UXD
                                    Power cable
                                    USB cable
                                    Accessories case

Content of Accessories case:    3D calibration model
                                                       Object holder
                                                       Universal plate
                                                       multiDie adapter
                                                       Triple Tray® impression holder
                                                       4-tooth bar (Twin Tray)
                                                       Adhesive pads
                                                       Data carrier with dental scan, calibration data
